Product Detail

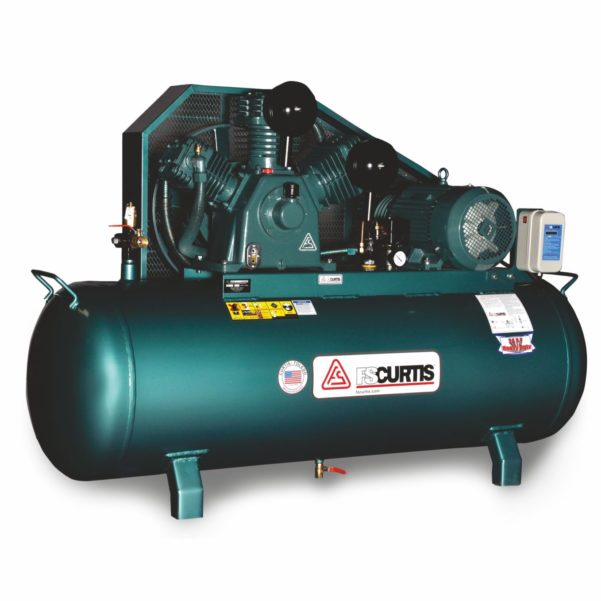

A Series Reciprocating Air Compressors
Reciprocating Air Compressors VA10 – TA150 to HVA10 -HTA200
Options
- Wheel mounted compressor on tank
- Base mounted compressor
- Special application compressor
- Compressor with non-standard tanks

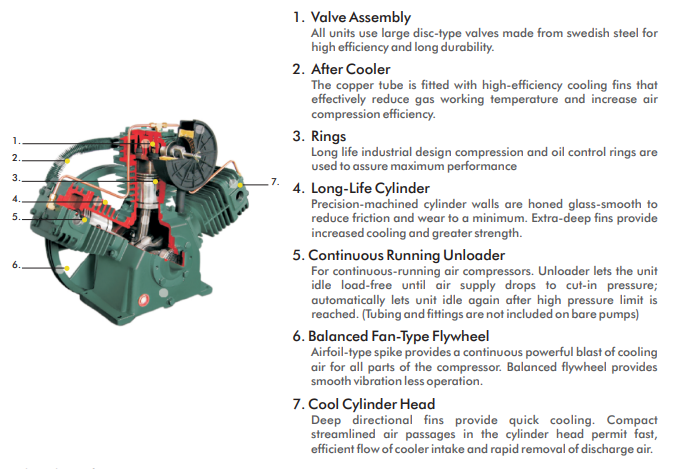

Built to last for superior compressor life with robust performance.
- Permanent type suction strainer Disc type valves – Swedish steel
- Copper tube fitted with high efficiency cooling fins for long life design & increased compression efficiency
- Precision machine cylinder walls for minimum wear
- Continuous running unloader
- Balanced air oil fan type flywheel, vibration less operation
- Quick cooling cylinder head
- Industrial grade connecting roads
- High tensile forged alloy steel balanced crankshaft
- Ball bearing or tapered roller main bearings
- Extra large crankcase with big oil reservoir provides good lubrication
KSRengineers Service Kits include all genuine parts and wear parts for the respective maintenance and ensure optimum operation of the systems.

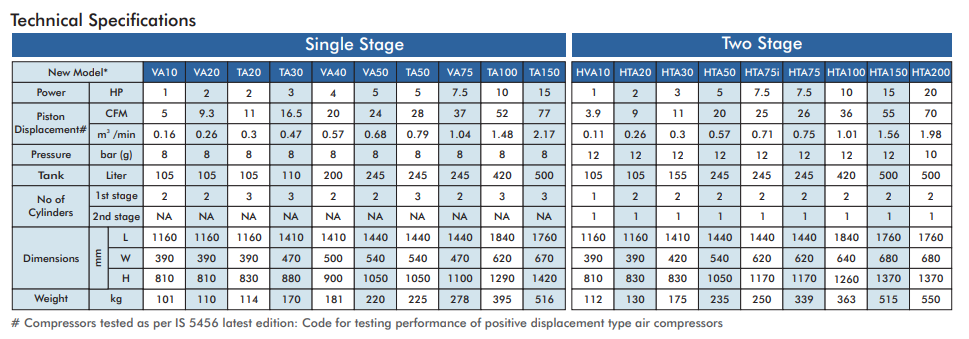

| Model | Weight (Kg) | Description |
| VA10 | 101 | Standard Filter Kit (Air/Oil) |
| VA20 | 110 | Annual Filter Kit (Air/Oil/Separator) |
| TA20 | 114 | Major Kit |
| TA30 | 170 | Screw Warranty Oil Fluid Force, 5 l |
| VA40 | 181 | Screw Warranty Oil Fluid Force, 5 l |
| VA50 | 220 | Screw Warranty Oil Fluid Force, 5 l |
| TA50 | 225 | Screw Warranty Oil Fluid Force, 5 l |
| VA75 | 278 | Screw Warranty Oil Fluid Force, 5 l |
| TA100 | 395 | Screw Warranty Oil Fluid Force, 5 l |
| TA150 | 516 | Screw Warranty Oil Fluid Force, 5 l |
8-12 Bar, Belt Driven, Oil Lubricated, Reciprocating Air Compressor Continuous duty, slow speed, oil injected piston compressors suitable for industrial applications.
