TWO-STAGE ROTARY SCREW AIR COMPRESSORS 90-250 KW

FS Curtis NXHE 90 – NXHE 260

Flow:- 19.5- 54.3 CMM

  • Two-stage air compressors are closer to the ideal isothermal compression
  • Reduced leakage increases volumetric efficiency
  • Saves 10-15% of energy compared to single stage compressors
  • Increases flow 10-15% compared to single stage compressors
  • Lower pressure differential increases efficiency and reliability
  • Low heat load
Contact Us
Request a Quote
Parts & Support

O LS Technology

The ultimate in system protection and reliability
• Protects critical cc•mponents from compressor-generated neat
• Compartmentaliæ:i air flow design and oversized aftercooler
• Extends component lite and reduces downtime

Energy-efficient Two-stage airend

Energy-saving and Eco-friendly
• Patented airend design integrates the first and second stage rotors into
one airend
• Oil is injected between the first and second stages to cml the air and
optimize efficiency
• Splitting the compression cycle into Two-stages reduces the axial and

thrust loading to which improves service lite ot airend and bearings
• Twcpstage compression significantly reduces noise

Effectively integrated overall design

Designed for low COSI ot ownership, easy service little down time
• Sate. etticieM air tilter system
• Independent bearing lubrication
• High efficiency. %sy-to-maintain oil separator
• IE3 high efficiency motor
• End face sealed to prevent leakage
• Connections utilize O-ring face seals lot leak—free performance
• Asbestos-tree gaskets protect operator health

KSRengineers Service Kits include all genuine parts and wear parts for the respective maintenance and ensure optimum operation of the systems.

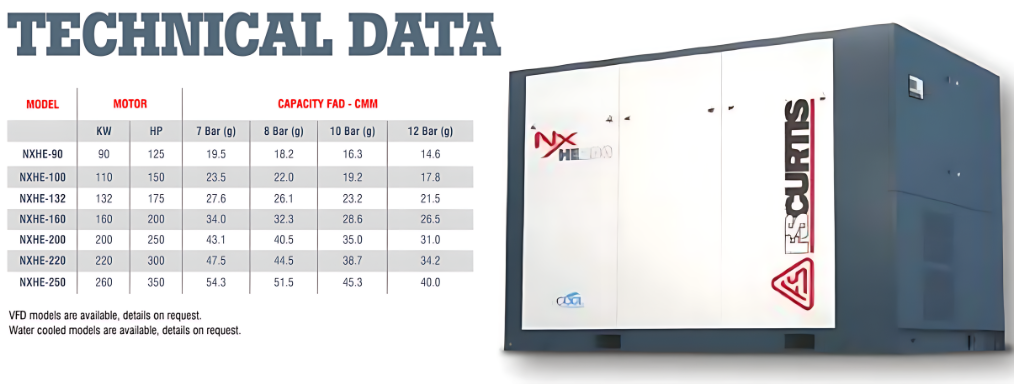

Model Capacity FAD Description
NXHE- 90 19.5 Standard Filter Kit (Air/Oil)
NXHE- 100 23.5 Annual Filter Kit (Air/Oil/Separator)
NXHE- 132 27.6 Major Kit
NXHE- 160 34.0 Screw Warranty Oil Fluid Force, 5 l
NXHE- 200 43.1 Screw Warranty Oil Fluid Force, 20 l
NXHE- 220 47.5 CompAir Warranty Oil AEON S, 5 l
NXHE- 250 54.3 CompAir Screw Warranty Oil AEON S, 20 l

  • Two-stage air compressors are closer to the ideal isothermal compression
  • Reduced leakage increases volumetric efficiency
  • Saves 10-15% of energy compared to single stage compressors
  • Increases flow 10-15% compared to single stage compressors
  • Lower pressure differential increases efficiency and reliability
  • LOW heat load
  • Easy maintenance and service
  • Lowest life-cycle cost of any compressor on the market
